	WPI Technical Theatre Handbook: Ellipsoidal Reflector Spotlights

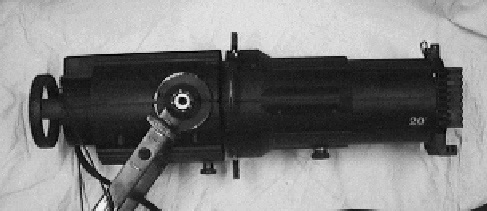

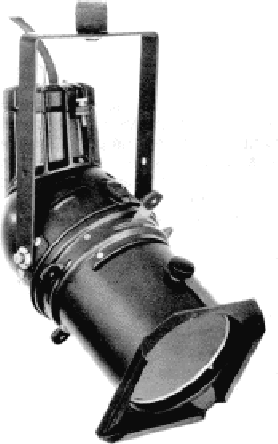

	Ellipsoidal Reflector Spotlights Ellipsoidal reflector spotlights (often called ERSs, or Lekos, after a company's ellipsoidal instrument) are among the most complex non-automated lights found in a theatrical lighting setup. Ellipsoidals consist of an incandescent lamp, an elliptical reflector, and one or two plano-convex lenses. There are many types of ellipsoidal instruments, but they all share the common trait of producing a sharp beam that can be focused and shaped. Most employ four shutters that allow the spill of light to be controlled. Ellipsoidals typically have provisions for color frames and gobo projection. Typical uses of ellipsoidals are: acting area lighting, specials, back or side lighting, and pattern projection (discussed a little later in this chapter). Figures 5.6 and 5.7 show typical ERS instruments. Figure 5.6: Typical non-axial ellipsoidal reflector spotlight. Figure 5.7: An Altman Shakespeare, a modern ellipsoidal reflector spotlight. Use of information in this document implies understanding and agreement with the copyright and terms of use. Specifically, no warranty is expressed or implied regarding the accuracy of the information contained within. YOU USE THIS INFORMATION AT YOUR OWN RISK. All trademarks are property of their respective owners. You must obtain permission from the author before using the contents of The Handbook for anything other than private use.	Table of Contents [Whole book in PDF 5.3MB] Contents Introduction Goals Sources Methods Conclusions Costumes Introduction Procurement Fabrics Color Patterns Fitting Rehearsal Clothing Design How to Begin Color Practicality Documents The Set Introduction Set Pieces Platforms Flats Stairs Rakes Other Structures Floor Coverings Construction Materials Tools Finishing Painting Types of Paint Mixing Paints Applying Paint Draperies Design How to Begin Documents Computer-Aided Design A Typical Set Construction at WPI Rigging Introduction Common Rigging Hardware Rope Wire Rope Thimbles, Wire Rope Clips, and Swages Shackles, Turnbuckles and Hooks Chain & Rapid Links Slings Fly Methods Non-Counterweighted Pulley Systems Counterweighted Fly Systems Lifts Chain Motors Flying Set Pieces Lighting Introduction Lighting Instruments Scoops Cyclorama Lights Parabolic Reflector Cans Fresnel Spotlights Ellipsoidal Reflector Spotlights Automated Instruments Color Color Theory Primary, Secondary and Complementary Colors of Light Light Mixing Practical Use of Color Glass, Gelatine and Plastics Dichroic Color Filters Patterns Dimmers Dimmer History Cables and Connectors Lighting Boards Control Design Washes Specials Cyclorama Lighting Color Lighting Angle Simulating Exteriors Lighting Design Paperwork Shop Order Instrument Plots Focus Sheets Computer-Aided Lighting Design A Typical Lighting Hang at WPI Audio Introduction Input Microphones Converting Sound to Electricity Directionality Analog Tape Digital Audio Tape (DAT) Compact Disc (CD) Mini-Disc (MD) Digital Samplers Computer Sound Cards Mixing Boards Signal Processing Equipment Equalizers Compressors and Limiters Noise Gates Effects Processors Output Power Amplifiers Speakers Crossovers Cabling and Connectors Line-Level Speaker-Level Automation Design Creating and Obtaining Effects Editing and Processing Effects Designing the Sound System The Input Section Signal Processing The Output Section A Typical Audio Setup at WPI Power Introduction Basic Theory Power Feeds Power Distribution Boxes Power Protection Important Considerations Special Effects Introduction Animated Costuming Smoke and Fog Pyrotechnics Acknowledgements References List of Figures Index About this document ...
